Food Instrument Reject Information

Contents ShowHide

The Food Instrument Reject Information screen is used to view the reject information for a food instrument.

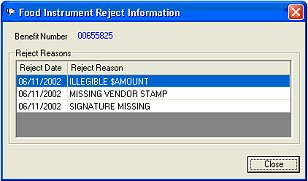

Food Instrument Reject Information screen

Screen Access

Display the Food Instrument Details screen > Click the Reject Information button.

Interface Initialization

Upon initial display of the screen, the following occurs:

The title bar text is set to "Food Instrument Reject Information".

The Benefit Number value label displays the currently selected benefit number
The Reject Reasons data grid will contain an entry for each reject reason that was recorded for the food instrument.

The Close button is visible and enabled as the default.

Screen Elements

Unless otherwise stated below, all controls on the Food Instrument Reject Information screen are visible and enabled when:

If one or more special conditions exist that affect a control on the Food Instrument Reject Information screen, the condition(s) are documented for that specific control below.

Benefit Number text and value label

View the benefit number of the food instrument in the Benefit Number text and value label.

The value label is populated with the value of the SerialNo column of the FoodInstrument table.

Information in this control is read-only and cannot be changed. The value label displays in the inverse color of the screen.

Reject Reasons data grid

View the information in the Reject Reasons data grid.

This data grid contains an entry for each time the food instrument was rejected by the WIC bank.

The data grid will contain an entry for each reject reason that was recorded for the food instrument. The entries will be sorted in descending order according to the value of the Reject Date and Reject Reason fields. The data in the data grid is read-only.

If the food instrument was ever rejected by the bank (even if it is eventually paid) and has the associated rejected reason information in the FoodInstrumentRejection table it will be displayed in this data grid.

The data grid consists of the following control(s):

Reject Date column

This column displays the date the food instrument was rejected for each record displayed within the data grid.

The title of the column is set to "Reject Date". The information displayed within the column is read-only.

Reject Reason column

This column displays the reason the food instrument was rejected for each record displayed within the data grid.

The title of the column is set to "Reject Reason". The information displayed within the column is read-only.

Close button

Click the Close button to close the screen.

It does not have a mnemonic. Its keyboard shortcut is the Esc (escape) key.

The Food Instrument Details screen displays when the button is clicked.

Processing

If data can be validated and saved on the screen, the following processes occur when the screen is processed:

A process to check for required controls as identified in the Data Map below is performed.
A process to check for valid entries as identified individually for each applicable control in Screen Elements above is performed.
A process to check for edits and cross edits as identified for each applicable control in Screen Elements above is performed.
If any checks or processes fail, a standard error message displays.

If no data can be validated and saved on the screen:

No cross edits are performed.
All values are considered legitimate.
No data is written to the database.

Data Map

The Data Map defines the values saved for all controls on the screen. If available, any additional notes or comments are displayed in the Notes column.

Control Label	Required	Table	Column	Notes
·	·	·	·	·
·	·	·	·	·
